| 2010 YAMAHA YDRA |
|
|
|
Price:
|
Call or Email for price
|
Vin:
|
|
|
Mileage:
|
1 miles
|
Stock #:
|
|
|
Exterior:
|
SUNBURST ORANGE
|
Engine:
|
1-Cylinder
|
|
Interior:
|
|
Transmission:
|
|
|
Trim/Package:
|
|
Fuel Type:
|
Gasoline
|
|
Vehicle Options
|
|
|
|
Vehicle Notes
|

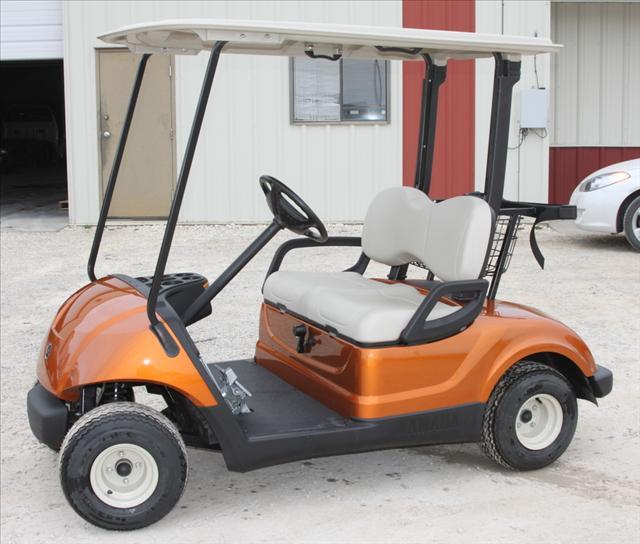

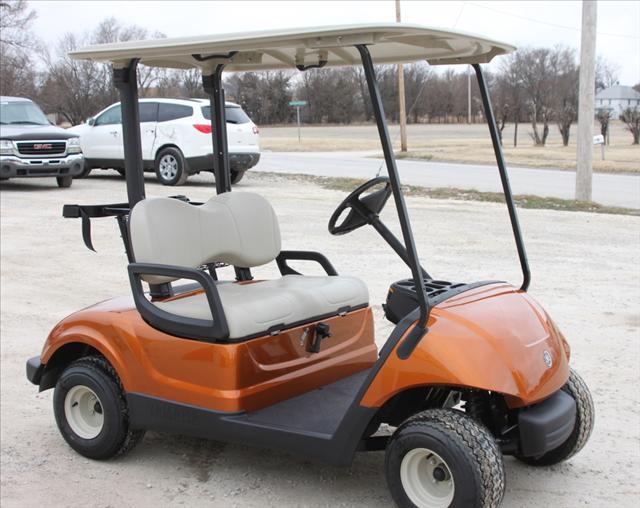

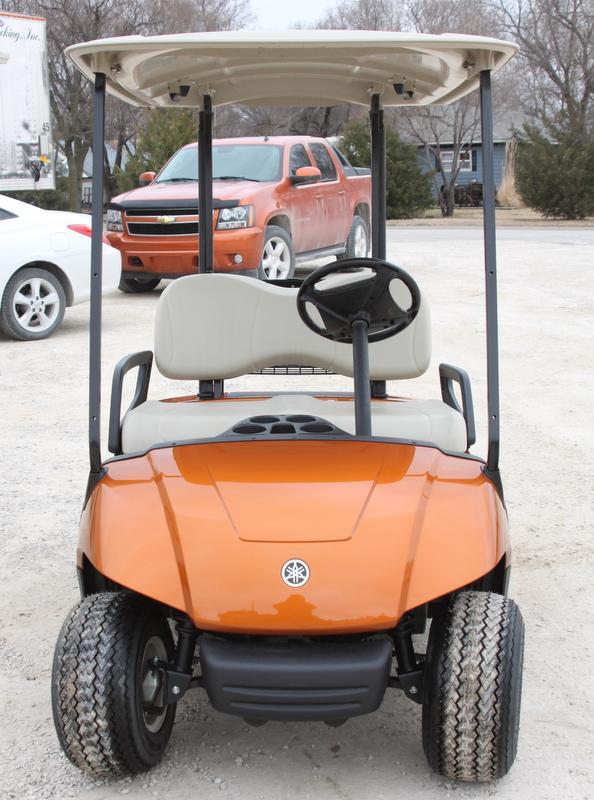

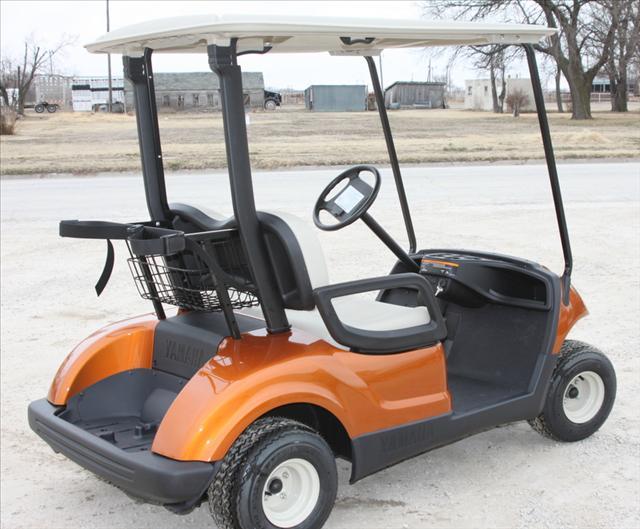

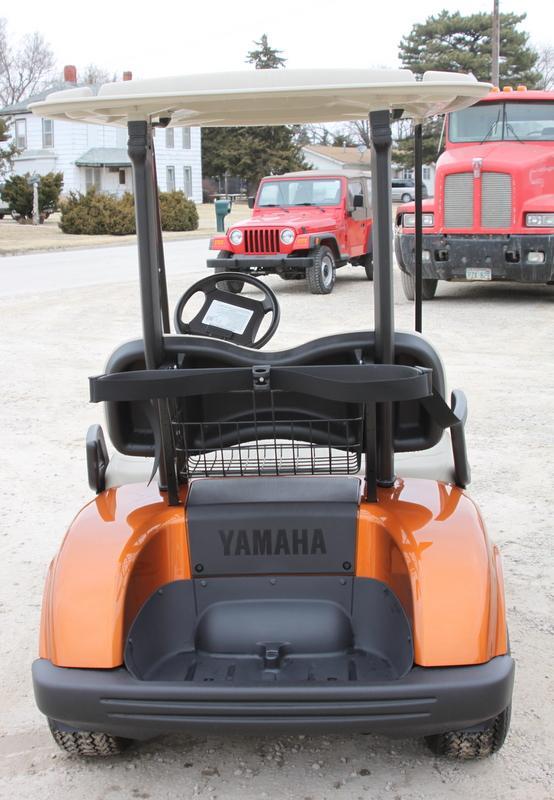

NEW YAMAHA GAS POWERED GOLF CAR SUNBURST ORANGE
SPECIFICATIONS
GENERAL SPECIFICATIONS
Items YDRA
Dimensions:
Overall length 2395 mm (94.3 in.)
Overall width 1200 mm (47.2 in.)
Overall height (steering height) 1190 mm (46.9 in.)
Height of floor 310 mm (12.2 in.)
Wheelbase 1640 mm (64.6 in.)
Tread:
Front 870 mm (34.3 in.)
Rear 980 mm (38.6 in.)
Minimum ground clearance 110 mm (4.3 in.)
Weight:
Dry weight (without battery) 255 kg (562 lb)
Vibration Level:
Vibration on seat (EN 1032,
ISO5008) for Europe Will not exceed 0.5 m/s2
Vibration on steering wheel
(EN1032, ISO5008) (for Europe) Will not exceed 2.5 m/s2
Performance:
Factory speed setting 19 km/h (12 mph)
Maximum speed 24 km/h (15 mph)
Minimum turning radius 2.8 m (9.2 ft)
Seating capacity Two occupants per seat,
four occupants maximum
Fuel Tank Capacity 25.0 L (6.6 U.S. Gallons)
SPECIFICATIONS
JW1 10-2

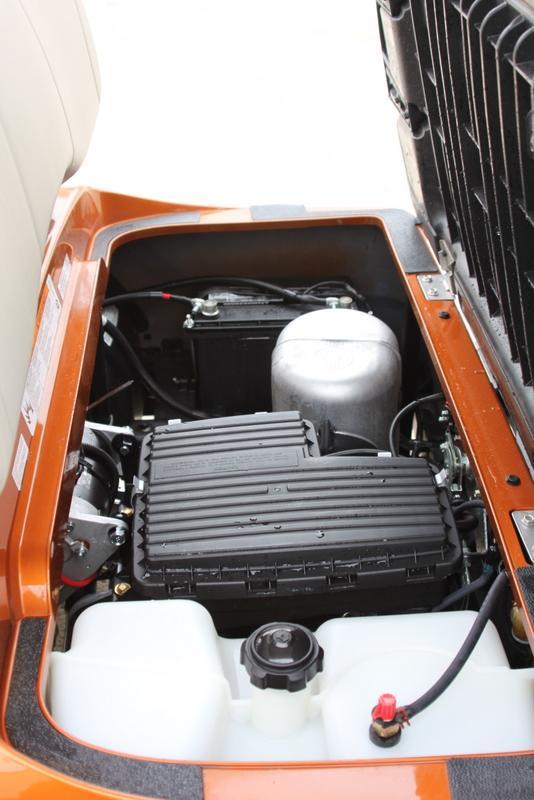

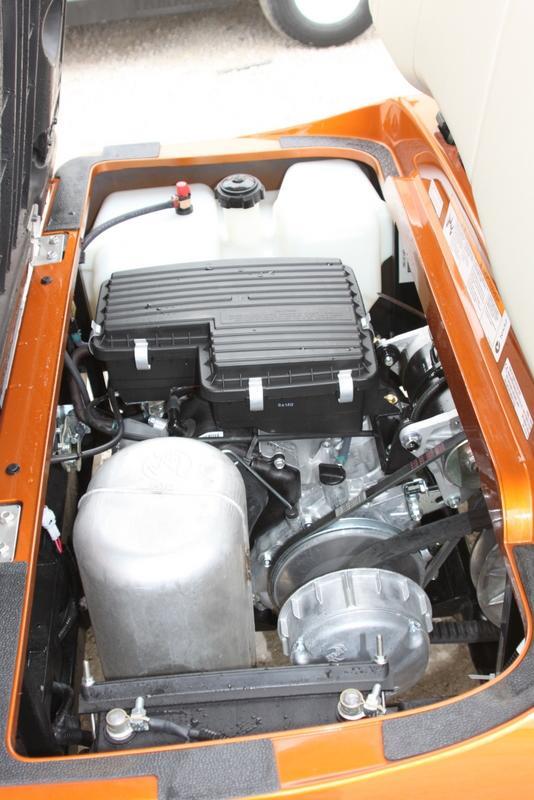

ENGINE
Items YDRA
Description:
Engine type 4-stroke, Gasoline, 60° incline OHV
Number of cylinders Single
Displacement 357 cm3
Bore x stroke 85 x 63 mm (3.30 x 2.48 in.)
Compression ratio 8.1:1
Rated output 8.5 kw (11.4 hp)/3500 rpm
Cooling system Forced air-cooled
Starting system Starter
Ignition system TCI Magneto
Spark plug type BPR2ES
Spark plug gap 0.7-0.8 mm (0.028-0.031 in.)
Lubrication system Splash-style positive oil lubrication
Engine oil type YAMALUBE 10W40 4-cycle oil
Engine oil capacity 1.0 L, 1000 cc (1.0 US qt)
Oil change quantity 1.0 L, 1000 cc (1.0 US qt)
TRANSMISSION
Items YDRA
Transmission:
Type V-belt automatic centrifugal engagement
V-belt width and outer line length 29.5 x 1010 mm (1.16 x 39.76 in.)
V-belt wear limit 27.7 mm (1.09 in.)
Governor:
Type Oil bath flyweight
Factory speed setting 19 km/h (12 mph)
Differential/reduction gear:
Differential type Bevel gear
Lubricant/capacity Yamalube Shaft Drive Gear Oil/
1750 mL, 1750 cc (1.85 US quarts)
SPECIFICATIONS
BATTERIES
Items YDRA
Battery: BCI group 24,
RC: minimum 75 min
CCA: minimum 400A
CHASSIS
Items YDRA
Steering system:
Type Rack and Pinion
Steering angle (L.H.) 1.85 turn
Steering angle (R.H.) 1.85 turn

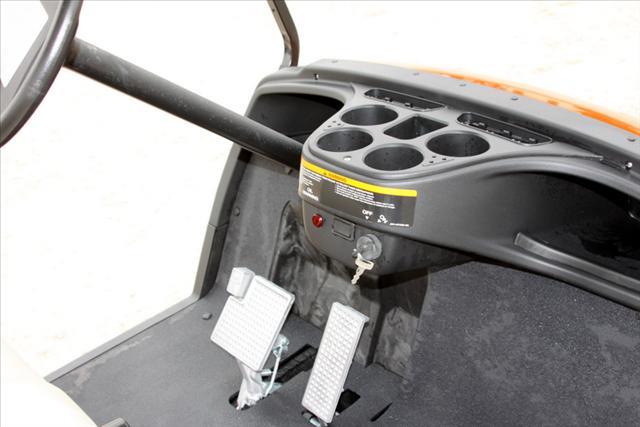

Brakes:
Brake system Mechanical
Type of brake Maintenance-Free internal transaxle disc brake
Brake pedal free play linkage
adjustment 45-50 mm
(1.77-1.96 in.)
(Brake cable end play) 0.1-0.5 mm (0.004-0.02 in.)
Parking brake:
Type Foot type; parking brake with automatic
release.
Release timing
(With pedal segment in second
notch)
(Bolt heads round parallel to arm) 0.0 ~ 0.3 mm (0.000 ~ 0.001 in.)
Wheel:
Tire size:
Front 18 x 8.50–8.00/4 PR
Rear 18 x 8.50–8.00/4 PR
Rim size: 7.00–I–8.00
Tire pressure: 110 kPa, 1.1 kgf/cm2 (16 psi)
WARRANTY
Warranty Standard 4-year limited vehicle warranty
|
|
|
