| 2006 YAMAHA G22A |
|
|
|
Price:
|
$3,000
|
Vin:
|
|
|
Mileage:
|
1 miles
|
Stock #:
|
|
|
Exterior:
|
IVORY
|
Engine:
|
1-Cylinder
357
|
|
Interior:
|
WHITE
|
Transmission:
|
|
|
Trim/Package:
|
|
Fuel Type:
|
Gasoline
|
|
Vehicle Options
|
|
|
|
Vehicle Notes
|

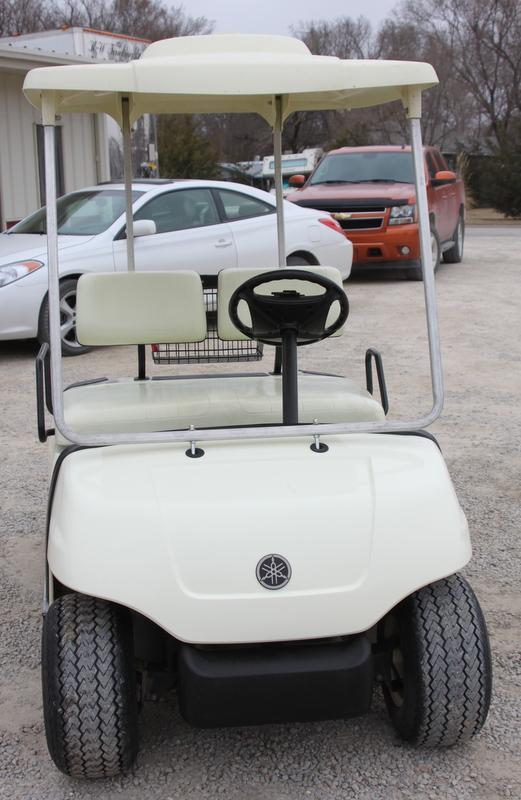

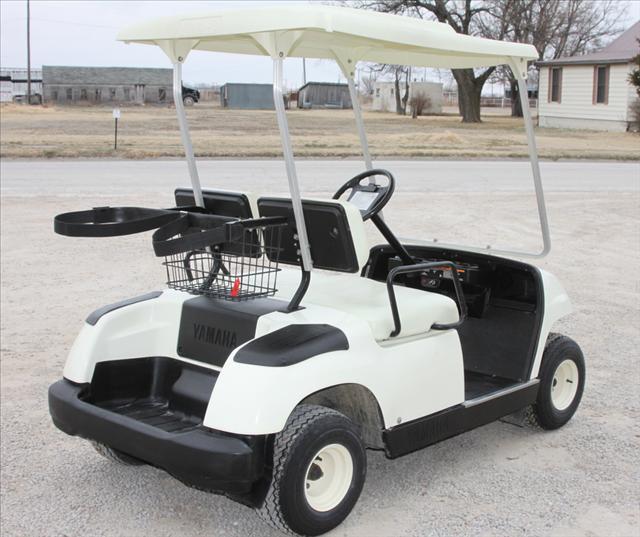

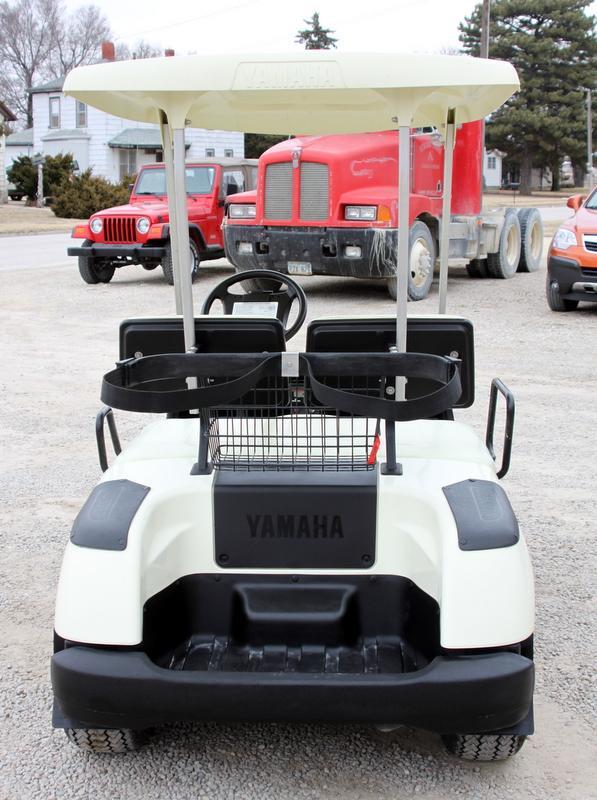

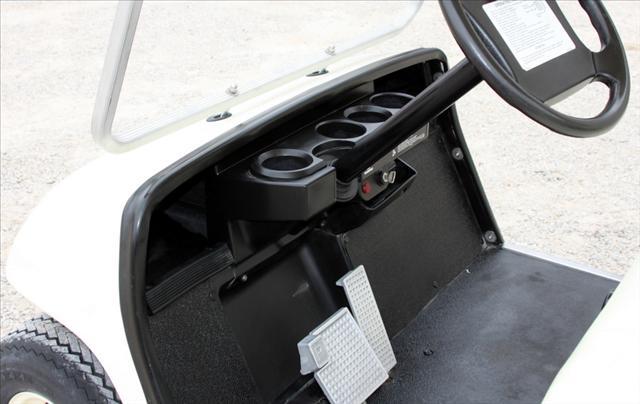

YAMAHA G22A GAS GOLF CAR
GENERAL SPECIFICATIONS
Items G22A
Dimensions:
Overall length 93.9 in. (2385 mm)
Overall width 47.2 in. (1200 mm)
Overall height (steering height) 46.8 in. (1190 mm)
Height of floor 11.8 in. (300 mm)
Wheelbase 64.3 in. (1632 mm)
Tread:
Front 34.3 in. (870 mm)
Rear 38.6 in. (980 mm)
Min. ground clearance 3.8 in. (97 mm)
Weight:
Dry weight (without battery) 670 lb (304 kg)
Performance:
Factory speed setting 12 mph (19 km/h)
Minimum turning radius 114.2 in. (2.9 m)
Seating capacity 2 persons
Hill climbing ability 27° (50% grade)
on pavement
10-1 G22A
SPECIFICATIONS
G22A 10-2

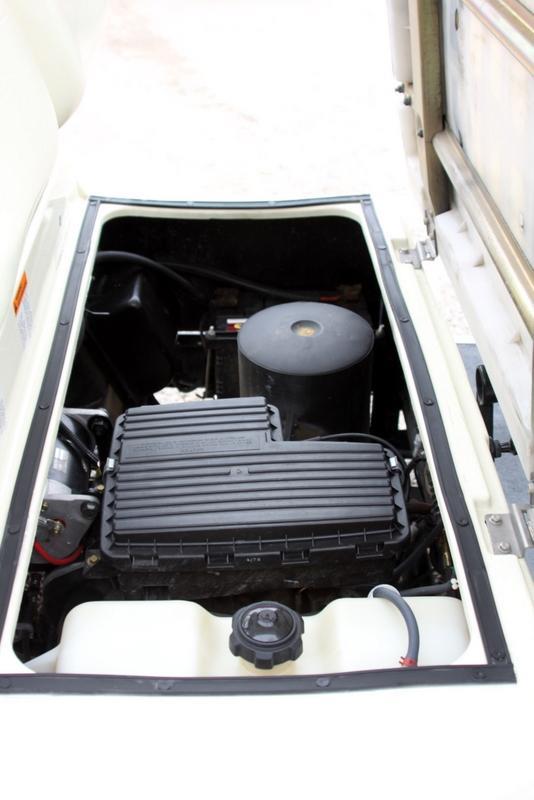

ENGINE
Items G22A
Description:
Engine type 4-stroke, Gasoline, OHV
Number of cylinders Single
Displacement 357 cm3
Bore x stroke 3.30 x 2.48 in. (85 x 63 mm)
Compression ratio 8.1:1
Rated output 11.4 hp (8.5 kw)/3500 rpm
Cooling system Forced air cooled
Starting system Starter
Ignition system TCI Magneto
Spark plug type BPR2ES
Spark plug gap 0.028-0.031 in. (0.7-0.8 mm)
Lubrication system Splash
Engine oil type YAMALUBE 4 cycle oil or SAE 10W30
Engine oil capacity 1.16 US qt (1.1 L, 1100 cc)
Oil change quantity 1.0 US qt (0.9 L, 900 cc)
TRANSMISSION
Items G22A
Transmission:
Type V-belt automatic centrifugal engagement
V-belt width and outer line length 1.22 x 39.76 in. (31 x 1010 mm)
V-belt wear limit 1.06 in. (27 mm)
Governor:
Type Oil bath flyweight
Factory speed setting 12 mph (19 km/h)
Differential/reduction gear: G22A
Differential type Bevel gear
Lubricant/capacity SAE 90 gear oil/
0.44 US qt (415 mL,
415 cc)
|
|
|
